  • Accumulating Roller Conveyor
  • Accumulating Roller Conveyor

K1300 Series

Accumulating Roller Conveyor

Features:

1.The conveyoris used as a zero pressure conveyor for transport articles.

2 The conveyor is ideally used in area where there is risk of jams and in buffer zones.

3. Accumulation roller conveyor may be driven by a powered belt or by motor rollers.

4. Rollers are stopped specifically to avoid collision when one transport unit comes to a standstill.


Advantages and Disadvantages of the accumulation roller conveyor

1. Commonly used non-adjustment light accumulation roller conveyor is low in cost, simple to use, and lightweight, making it very suitable for the transportation of light materials.

Disadvantages: As the speed and weight of the workpiece increase, it wears faster and cannot be adjusted.

2. Because the adjustable accumulation roller conveyor has a spring clamping function, the spring clamping force can be adjusted by tightening the nut, and then the friction between the friction plate and the roller wall can be adjusted. After a period of use, the friction force decreases due to the wear of the friction plate, and the friction force can be adjusted again through the nut.

Disadvantages: Each adjustment of the friction force becomes troublesome due to disassembly and assembly debugging. The durability of the friction plate and the appropriateness of the adjustment of the friction force determine the service life of the roller.


We offer a wide variety of conveyor systems that are suitable for various applications, from handling and processing, sorting and flexible assembly operation in automotive, electronic, food, pharmacy agriculture and many other industries. Our conveyor have also established a strong presence for distribution and warehousing applications.

Hits:Print

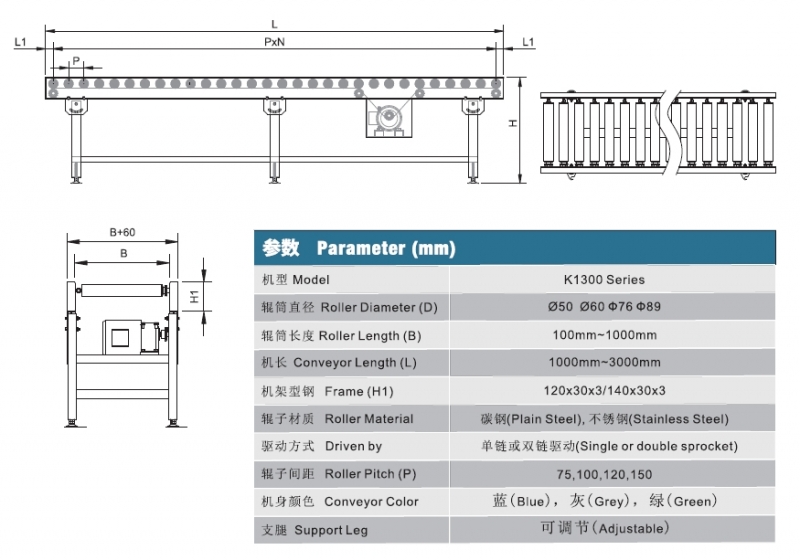

Model:K1300 Series
Roller Diameter(D):Φ50 Φ60 Φ76 Φ89
Roller Length(B):100mm~1000mm
Conveyor Length(L):1000mm~3000mm
Frame(H1):120x30x3/140x30x3
Roller Material:Plain Steel, Stainless Steel
Driven by:Single ordouble sprocket
Roller Pitch(P):75,100,120,150
Conveyor Color:Blue, Grey, Green
Support Leg:Adjustable
